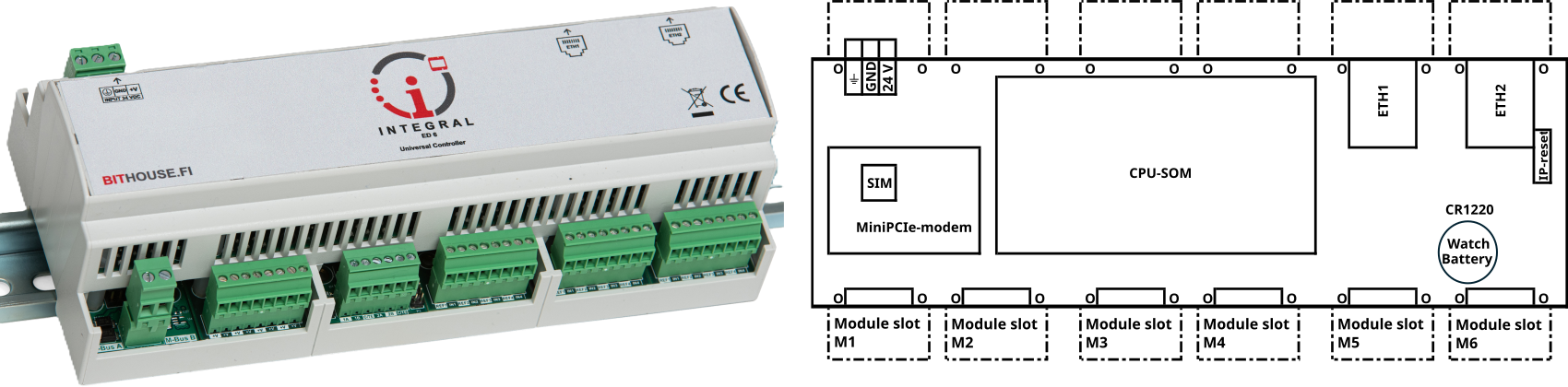

Integral universal processor
Integral universal processor consists of an efficient processor part with standard 4G modem capability and two ethernet ports.
The processor can be modified very flexibly according to the requirements of the object. The I/O distribution and the communication interfaces of the fieldbuses can be defined separately for each processor with different types of Integral modules (IM-XX).
Six (A-F) Integral modules can be installed on one Integral processor, which can be selected according to the project’s requirements.
Integral modules
IM-U 816 is a universal I/O module to which a maximum of eight analog or sixteen digital input or output messages can be connected. The same module can contain both analog and digital messages.
IM-M Bus 20 is designed to connect M-Bus devices to the Integral processor. A maximum of twenty M Bus devices can be connected to the module.
IM-RS 485 module has two RS485 buses. Via the module, for example, Modbus RTU devices with different data transfer rates can be connected to the Integral processor.
